Product Name : The entry-level gearless CI perfect for short run jobs.
PHOENIX-A
Product Description

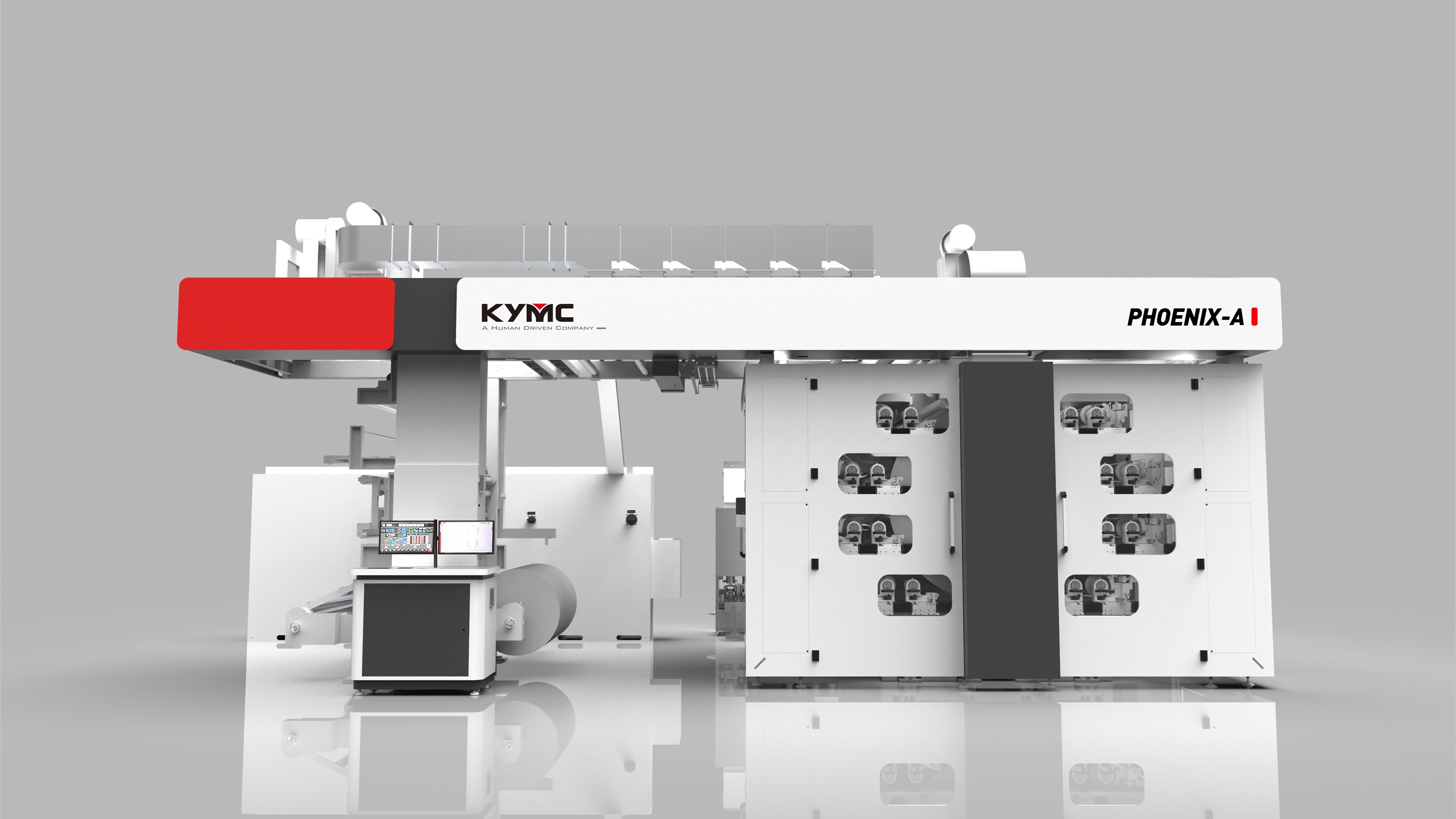

PHOENIX-A (The lightweight CI press perfect for short run jobs)

Phoenix-A is a compact gearless CI flexographic printing press equipped with fully servo-motor controlled printing units, achieving high-precision registration and impression control, delivering consistently excellent high-quality printing. Its quick job change design, both in hardware and software, effectively addresses the growing trend of short-run orders and small packaging demands, helping you maintain a competitive edge. Its compact design is suitable for limited factory spaces, allowing you to easily upgrade your equipment even in space-constrained environments, making it the best investment choice for quickly entering the CI printing field. If you're looking for a lightweight, efficient, and reliable gearless CI flexographic printing press, Phoenix-A is your ideal choice.

Specification Details
Specifications   PHOENIX-A
Number of Colors
Max Machine Speed m/min
ft/min
300
984
Material Width mm
inch
1270
50
Printing Sleeve Width mm
inch
1200
47.2
Roll Diameter mm
inch
800
31.5
Repeat Length mm
inch
360~800
14.2~31.5
About
  • Single unwind 800mm
  • Single rewind 800mm
  • Servo motors for CI unit
  • High-efficiency drying tunnel
  • Print and Anilox sleeve
  • Camera viewing system
  • Infeed web guide

The PHOENIX-A is a gearless CI press equipped with servo motors at the CI section to allow for print precision and quick job change. The compact design of this model allows you to place the press in limited factory space, enabling you to upgrade equipment despite space constraints.

Operation Comfort

  • Touch screen interface
  • User friendly layout screen control
  • Fully digitalized controls for precise print settings

Print Quality

  • Servo motor control at print deck, guarantee excellent print registration holding
  • Web viewing system
  • Micrometric kiss impression control to one micron

Quick job Change

  • Anilox and plate sleeve design
  • Rapid quick wash features for inking system (option)
  • Job memory for repeat tasks

Safety

  • Compliant with Conformité Européene or Australian Standard
  • Certification service available with CSA, NEC and IEC

Paper

Food packaging, Medical packaging, Pre-print for paper box, Bags, Paper cup, Liquid & beverage, Household cleaning, Cosmetics, Gift wraps, Wallpaper

Film

Food packaging, Medical packaging, Industrial packaging, Sanitary Packaging, Bags, Liquid & beverage, Household cleaning, Cosmetics, Confectionary wrappers

Aluminum

Food packaging, Medical packaging, Industrial packaging

Woven bag
