Printing with inline coating & lamination

Product Name : Printing with inline coating & lamination
SFX-SLW
Add This Press to Inquiry
Product Description

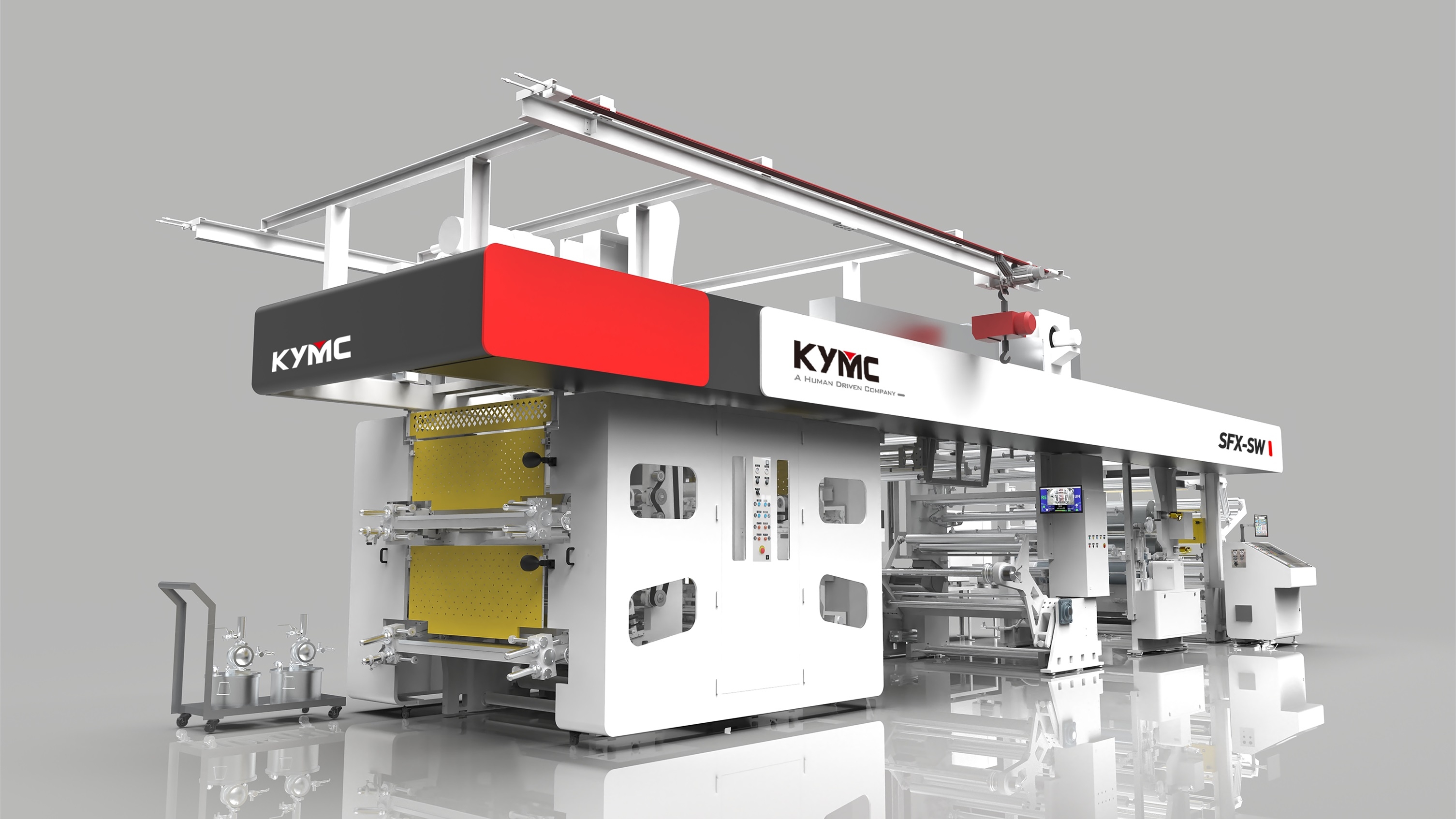

SFX-SLW (Integrated multi-process equipment combining lamination, printing, and coating: a high-efficiency integrated system designed specifically for paper bag and food wrap production lines)

SFX-SLW is a high-efficiency integrated production system tailored specifically for paper bag and food wrap production lines. It can achieve various lamination processes including paper-to-paper lamination, paper-to-aluminum lamination, wax paper coating, and more. This multi-process equipment ingeniously integrates lamination, functional coating, and flexographic printing technologies, delivering exceptional efficiency in multi-process inline production, significantly simplifying the production process and notably reducing labor and material waste. SFX-SLW offers a diverse range of functional coating options, including specialized (wax) hot melt adhesive coating, gravure coating, flexo coating, and flexible flexo-gravure switchable coating. Moreover, the printing unit inherits the legacy of our highly acclaimed SFX series, ensuring that SFX-SLW possesses excellent high-speed color registration stability and superior print quality. Choose SFX-SLW to make your paper packaging production line stand out from the competition.

Inline Coating and Lamination
Inline Coating and Lamination
Inline Coating and Lamination
Inline Coating and Lamination
Inline Coating and Lamination
Inline Coating and Lamination
Inline Coating and Lamination
Printing with inline coating & lamination
Printing with inline coating & lamination
Printing with inline coating & lamination
Specification Details
Specifications   IN-LINE COATING & LAMINATION SERIES
Max Machine Speed m/min
ft/min		 250
820
Max Material Width mm
inch		 600 / 800 / 1000 / 1200 / 1300 / 1500 /1700
23.6 / 31.5 / 39.4 / 47.2 / 51.2 / 59 / 66.9
About

Available for following Coating head application:

Reverse Gravure or Direct Gravure coating

  • Incl. Gravure Coating Head and Independent Drying system.
  • Main drive to be discussed according to match to Main Production process.
  • Available for Trolley design.

Flexo Coating or Semi-Flexo Coating

  • Incl. Flexo Coating Head and Independent Drying system.
  • Main drive to be discussed according to match to Main Production process.
  • Available for Trolley design.

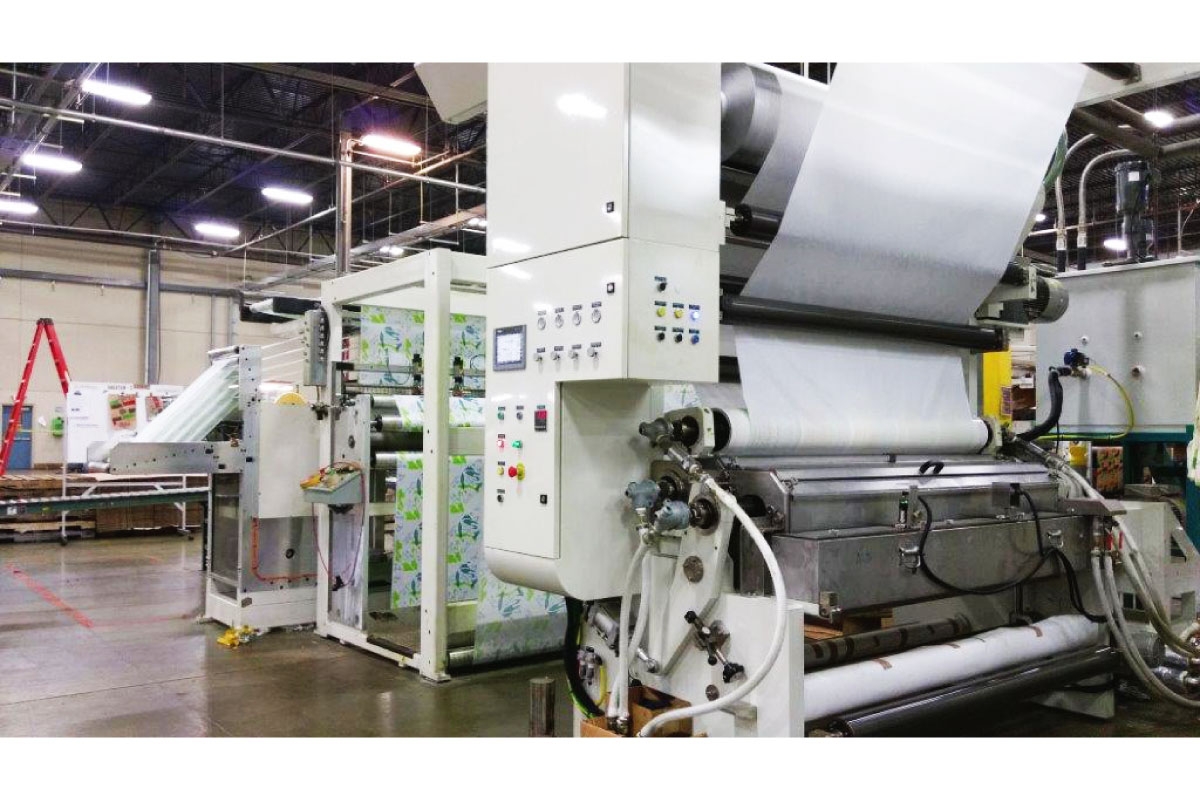

Waxer or Hotmelt (Coating/Lamination)

  • Incl. Wax or Hotmelt Glue Coating Head and Pre-Heating system (Option) for Wax / Glue melting.
  • Independent Cooling rollers design for Wax / Glue Curing.
  • Main drive to be discussed according to match to Main Production process.
  • Available for Trolley design.

Cold seal coating in register Varnishing in register

  • Incl. Coating Head and Independent Drying system.
  • Main drive to be discussed according to match to Main Production process.
  • Register Control can be manual or Auto-registration (Option.)

UV Varnish and Spot Coating

  • Incl. Coating Head and UV Curing system.
  • Main drive to be discussed according to match to Main Production process.

The In-line coating and lamination customized units allow you to integrate your whole processes into one machine. This is suitable for production that are very fixated when it comes to the processes that it has to go through. If you have a production that will always go through a set of processes in the same order, you should consider maximizing your efficiency with a customized inline coating or lamination unit or both. The in-line coating and lamination unit is designed for……

Operation Comfort

  • Integrate with the current machine’s touch screen interface or independent touch screen for operational control.
  • User friendly layout screen control

Remote Service Assistance

  • Integrate into the current 24/7 machine online diagnostic system
  • integrate into the current PLC Network Connection Technology to achieve deep online diagnose and prompt remote-maintenance.

Industrial I4.0

  • OPC UA Data Exchange Protocol for communication between devices, machines and enterprise systems (ERP, SCADA, CRM…etc)
  • Remote HMI monitoring via mobile devices

Safety

  • Compliant with Conformité Européene or Australian Standard
  • Certification service available with CSA, NEC and IEC

Various coating and lamination technologies for various kinds of substrate. film on film. film on foil, film on paper, foil on paper.

End Product: flexible packaging / food packaging / electronic industrial application
