Product Name : The Lightweight Coating and Laminator
SL
Product Description

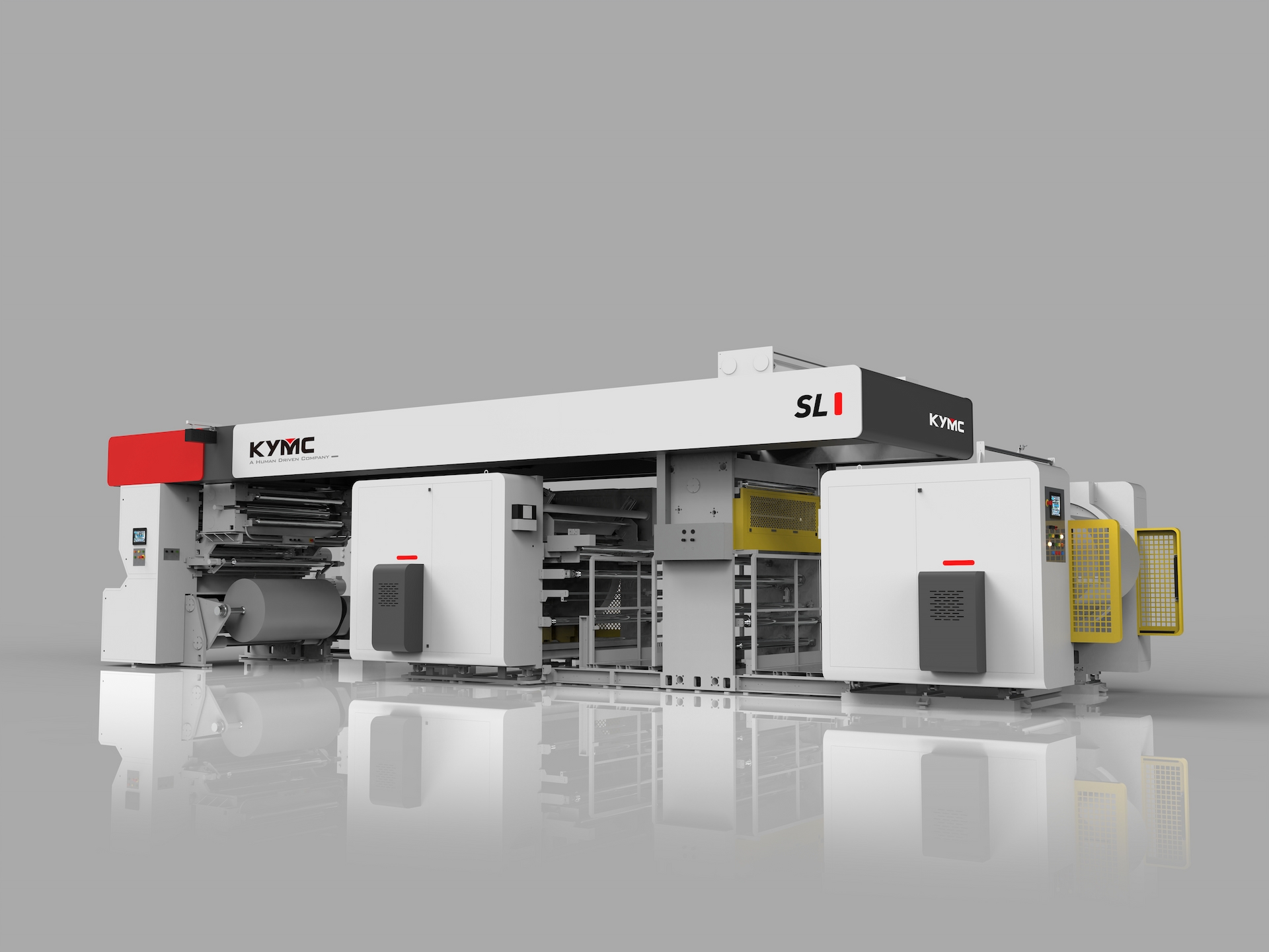

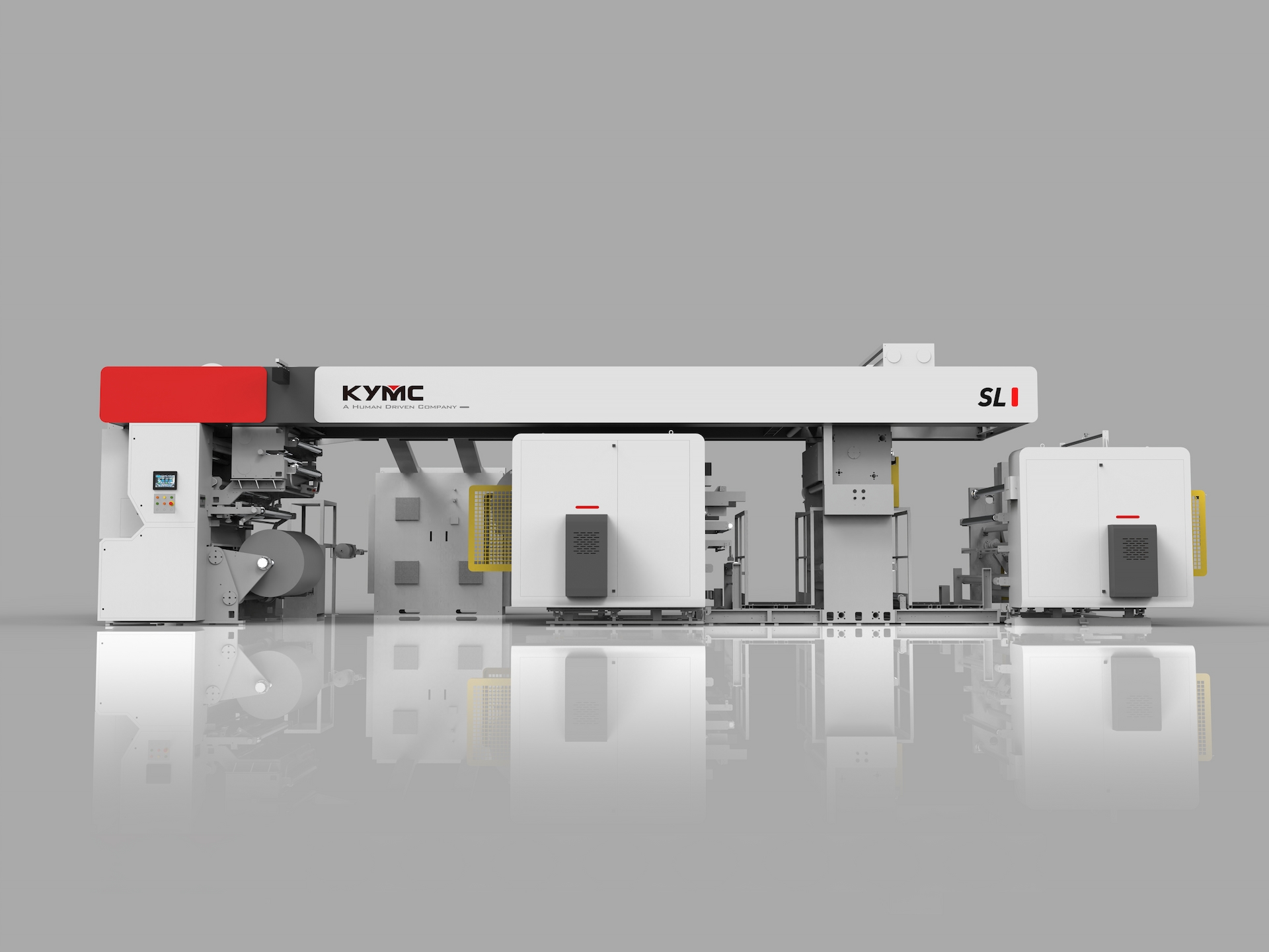

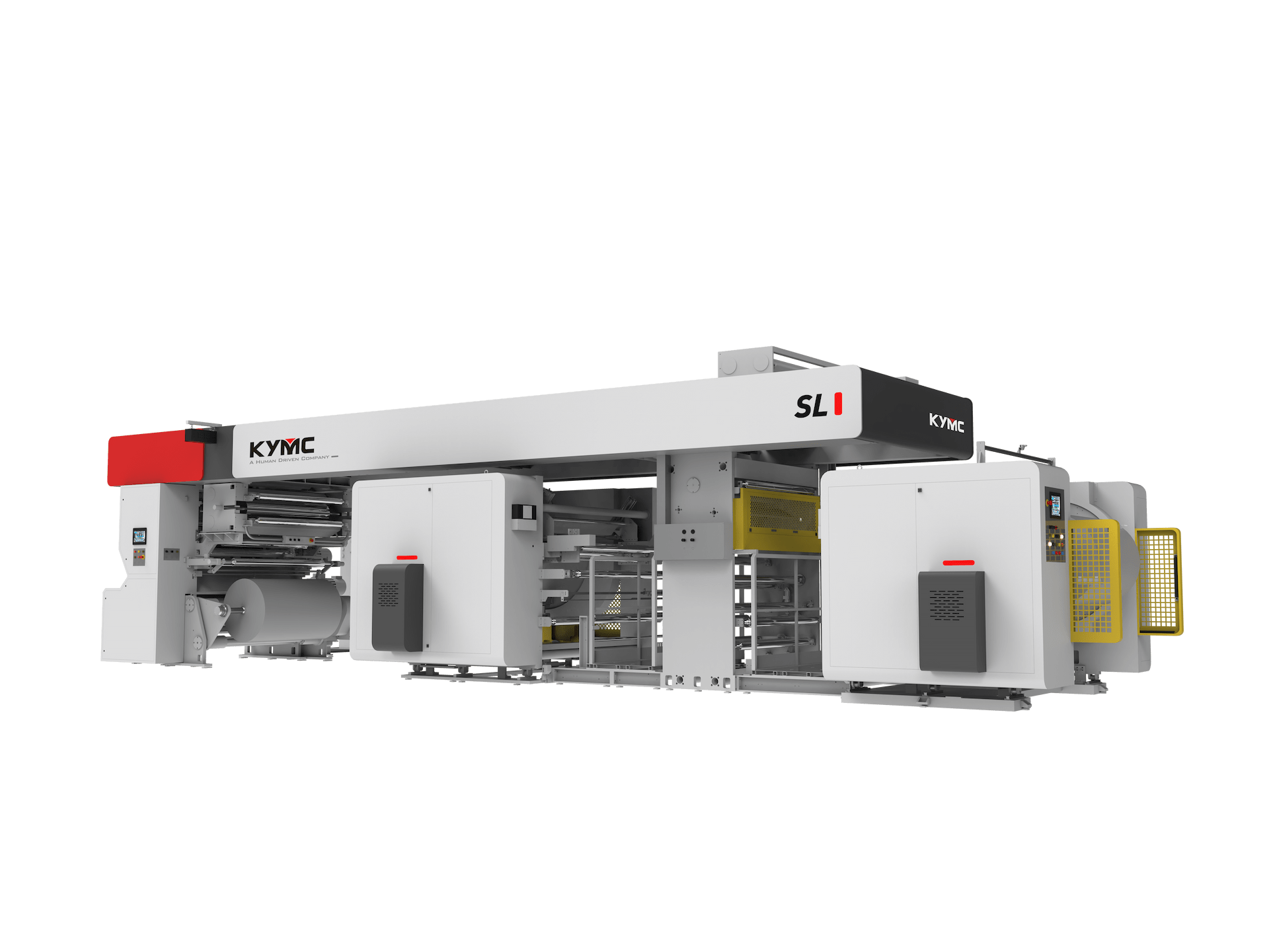

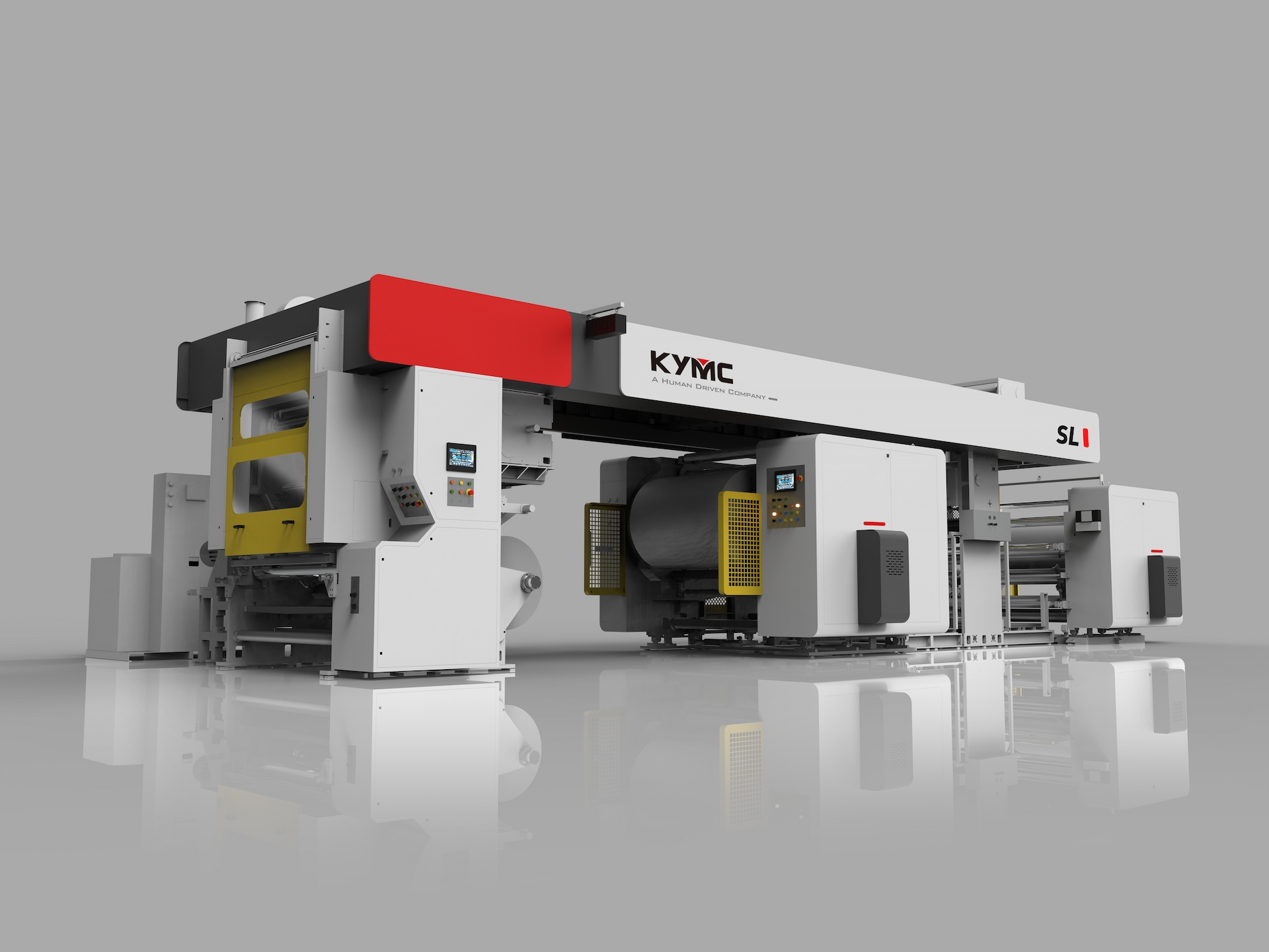

SL (The Lightweight Coating and Laminator)

The solventless laminator provides an answer for the growing environmental concerns and protection measures. It also eliminates the possibility of solvent migration, making it preferred by food processing companies. If you are looking for environmentally friendly lightweight solution, this is the solventless laminator press for you to customize.

Specification Details
Specifications   SL SERIES
Max Machine Speed m/min
ft/min
350
1148
Material Width mm
inch
1100 / 1300 / 1500
43.3 / 51.2 / 59.1
Max Roll Diameter mm
inch
600 / 800 / 1000 / 1200 / 1500
23.6 / 31.5 / 39.4 / 47.2 / 59.1
About
  • Single Newly designed shaft - less chucking system for all Winders.
  • Non stop unwind and rewind are available as Optional.

Automation:

  • Fully driven on coating station, laminating nip and all winders with auto speed and tension control.
  • Centralized control and monitoring system with clear structured graphic for easy operation.
  • Machine functions are PLC controlled, user friendly touch screen operation.
  • Job memory (recipes) with auto machine pre-setting for coating weight and running tension.

Coating station:

  • Cantilever design sleeve system on coating roller for quick change.
  • Heating unit with auto temperature controls is supplied.
  • Precisive adhesive mixer with oscillating adhesive feeding device is integrated with the machine.
  • Exhaust system eliminates emission of fume during production.

The Solventless laminator provides an answer for the growing environmental concerns and protection measures. It also eliminates the possibility of solvent migration, making it preferred by food processing companies. The bond is achieved through a chemical reaction between the metering rolls, very light coating weights are achievable, and no drying is required, resulting in cost savings per laminated square meter. The SL machine is designed for…

Operation Comfort

  • Integrate with the current machine’s touch screen interface or independent touch screen for operational control.
  • User friendly layout screen control

Remote Service Assistance

  • Integrate into the current 24/7 machine online diagnostic system
  • integrate into the current PLC Network Connection Technology to achieve deep online diagnose and prompt remote-maintenance.

Industrial I4.0

  • OPC UA Data Exchange Protocol for communication between devices, machines and enterprise systems (ERP, SCADA, CRM…etc)
  • Remote HMI monitoring via mobile devices

Safety

  • Compliant with Conformité Européene or Australian Standard
  • Certification service available with CSA, NEC and IEC

Aluminum foil, Cellophane, Polyester, PP, Metallized BOPP, PE, Polysterene, Saran, Paper and similar flexible packaging materials.
